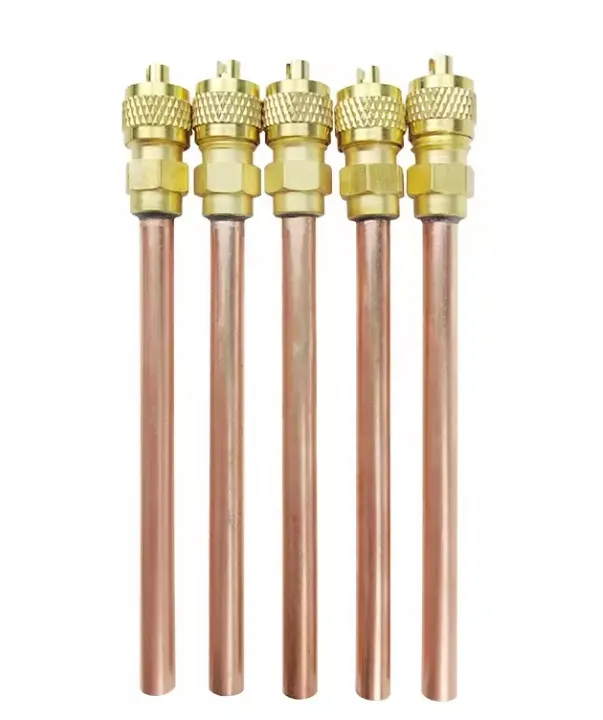

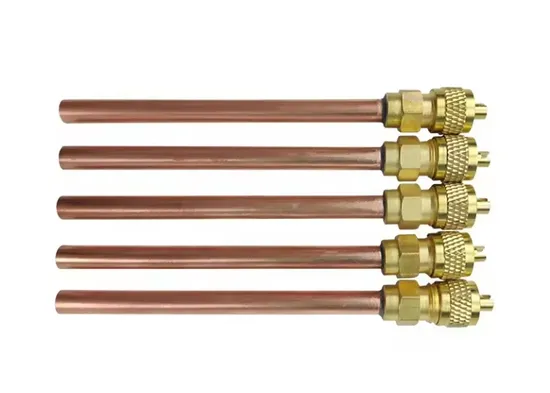

Copper Charging Access Valve – 3/16″ SAE Flare with 4-Inch Copper Stem

The 3/16″ Copper Access Valve is a specialized service port designed for precision refrigeration systems. Often used where space is limited or on smaller-diameter tubing, this valve provides a permanent, leak-proof point for charging refrigerant, measuring pressures, or performing vacuum evacuations. Constructed with a high-purity copper stem and a robust brass head, it is engineered to be brazed directly into capillary lines or small domestic cooling circuits.

₦780 ₦1,000

Add to cart

  • Precision 3/16″ Stem: Specifically sized for small-diameter copper tubing commonly found in domestic refrigerators, water dispensers, and specialized laboratory cooling equipment.

  • Universal 1/4″ SAE Flare: The service head is a standard 1/4″ male flare, ensuring full compatibility with your existing manifold gauges and charging hoses.

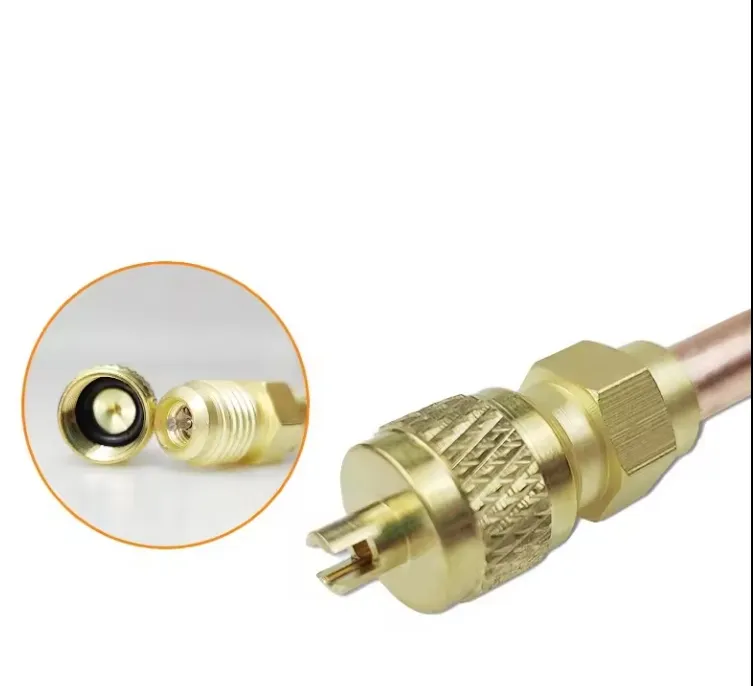

  • Durable Brass Cap: Each valve includes a knurled brass cap with an internal gasket for a secondary seal and a built-in tool for easy valve core removal.

  • High-Pressure Reliability: Rated for modern high-pressure refrigerants, ensuring a secure seal under the demanding conditions of R134a, R600a, and R410A systems.

  • Easy Brazing: The extended copper tail allows you to apply heat for brazing while keeping the sensitive valve body cool.

Applications:

  • Domestic Refrigeration: Ideal for adding a service port to fridges and freezers using 3/16″ tubing.

  • Water Dispensers: Used for maintenance and gas recharging in compact bottled water coolers.

  • Capillary Line Access: Perfect for systems where standard 1/4″ valves are too large for the existing pipework.

Technical Specifications (Attributes)

Attribute Detail
Material C1220 Dehydrated Copper & Forged Brass
Connection Size 1/4″ SAE Male Flare
Stem Diameter 3/16″ (4.76mm)
Stem Length 2 Inches to 4 Inches (depending on batch)
Max Pressure 800 PSI
Compatibility R134a, R600a, R22, R410A, R32

Market Insight: In local markets like Ebute-metta or Ladipo, finding the specific 3/16″ size can be harder than the standard 1/4″. Elins Nigeria stocks these specifically for technicians who want a professional fit without having to “force” a larger valve onto a small pipe

Technical Warning: Because 3/16″ tubing is very thin, it heats up extremely fast.

Elins Nigeria Advice: You MUST remove the valve core before brazing. Use a damp cloth to wrap the brass head of the valve to act as a heat sink, preventing the internal seat from warping while you braze the copper stem.
