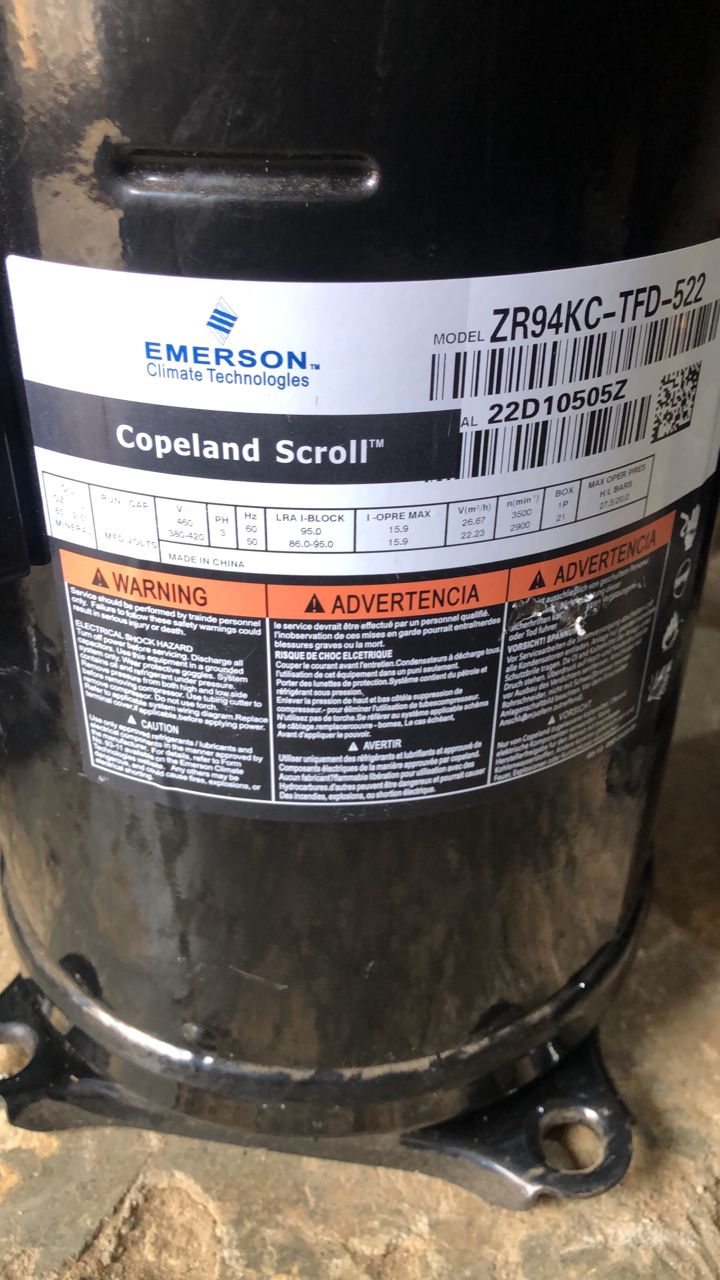

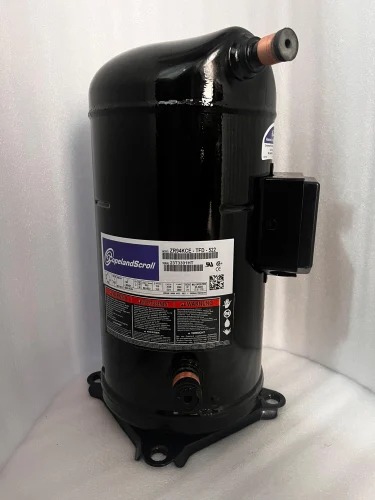

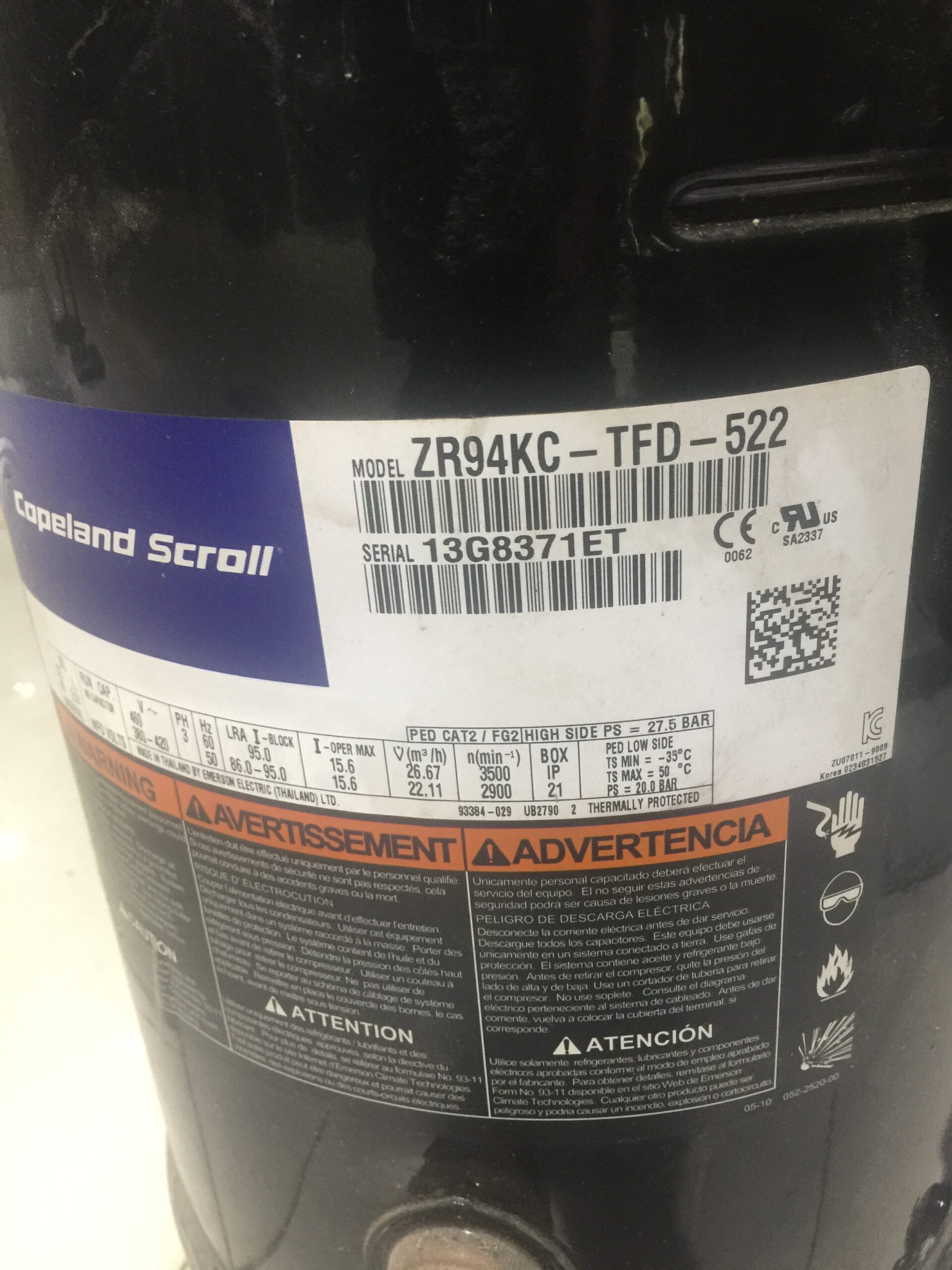

Copeland 8HP Three-Phase Scroll Compressor ZR94KC-TFD-522 (R22/R407C)

The Copeland Scroll Compressor ZR94KC-TFD-522 is a heavy-duty, 8-Horsepower commercial-grade hermetic compressor designed for large-scale central air conditioning systems, package units, and industrial chillers. Engineered for superior reliability and high-efficiency cooling, this original component features a high-torque three-phase motor (TFD) designed to operate seamlessly on standard 380-420V / 50Hz (and 460V / 60Hz) power infrastructure. Built to withstand the high ambient operating temperatures across Nigeria, it offers low-vibration performance and optimal energy savings for commercial HVAC applications.

₦1,450,000

Add to cart

Keep your commercial cooling systems operating at peak performance with the industry’s most trusted heavy-duty compressor. The Copeland ZR94KC-TFD-522 leverages premium scroll technology to deliver constant, reliable compression with minimal moving parts compared to old reciprocating alternatives. This ensures extended lifecycle operations, significantly reduced mechanical wear, and excellent energy efficiency ratings (EER).

Perfect for facility managers, HVAC engineers, and commercial technicians in Nigeria, this 8 HP unit serves as a robust drop-in replacement for large-scale ducted systems, rooftops, and precision cooling setups. It comes factory-ready for R22 and R407C refrigerants, uses high-grade mineral oil lubrication, and features durable sweat/stub connections to guarantee a leak-proof braze installation under heavy physical demands.


Technical Specifications

Specification Value
Brand Copeland (Emerson / Copeland Climate Technologies)
Model Number ZR94KC-TFD-522
Horsepower (HP) 8.0 HP
Cooling Capacity ~79,500 BTU/hr (at 50Hz) / up to 94,000 BTU/hr (at 60Hz)
Voltage / Phase 380-420V / 3-Phase / 50Hz (Also rated for 460V / 60Hz)
Refrigerant Compatibility R22, R407C, R134A
Application Type High/Medium Temperature (Commercial AC & Chiller Systems)
Nominal Current (FLA) 16.2 A
Locked Rotor Amps (LRA) 95.0 A
Suction Line Size 1 1/8″ Stub / Sweat
Discharge Line Size 7/8″ Stub / Sweat
Oil Type & Charge Mineral Oil / 2.51 Liters (Initial Charge)

Shipping & Logistics Data

  • Net Weight: 58.0 kg (128 lbs)

  • Gross Shipping Weight (with protective wooden pallet/crate): ~64.0 kg

  • Estimated Dimensions: 32 cm × 32 cm × 50 cm
